Broadcom BCM957414M4143C

Nettverksadapter - PCIe 3.0 x8 Mezzanine - 50 Gigabit QSFP28 x 1
Ikke på lager
Produsent Brocade
Artnr BCM957414M4143C
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Single-port pluggable media interface, which may be equipped with 50 Gb/s QSFP28 optical transceiver or with copper direct-attach cable
    • Fully compliant with the SFF-8665 standard
    • X8 PCI Express 3.0 compliant
    • SR-IOV with up to 128 virtual functions (VFs)
    • Function-Level Reset (FLR) support
    • TruFlow flow processing engine
    • Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
    • VSwitch acceleration
    • Tunnel-aware stateless offloads
    • DCB support: PFC, ETS, QCN, DCBx
    • RDMA over Converged Ethernet (RoCE)
    • Network Controller Sideband Interface (NC-SI)
    • SMBus 2.0
    • MCTP over SMBus
    • PCIe-based UART and KCS
    • Jumbo frames up to 9 KB
    • Advanced Congestion Avoidance
    • Multiqueue, NetQueue, and VMQ
    • IPv4 and IPv6 offloads
    • TCP, UDP, and IP checksum offloads
    • Large Send Offload (LSO)
    • Large Receive Offload (LRO)
    • TCP Segmentation Offload (TSO)
    • Receive-side Scaling (RSS)
    • Transmit-side Scaling (TSS)
    • VLAN insertion/removal
    • Interrupt coalescing
    • Network boot - PXE, UEFI
    • ISCSI boot
    • Wake-on-LAN (WOL)
    • MSI and MSI.X

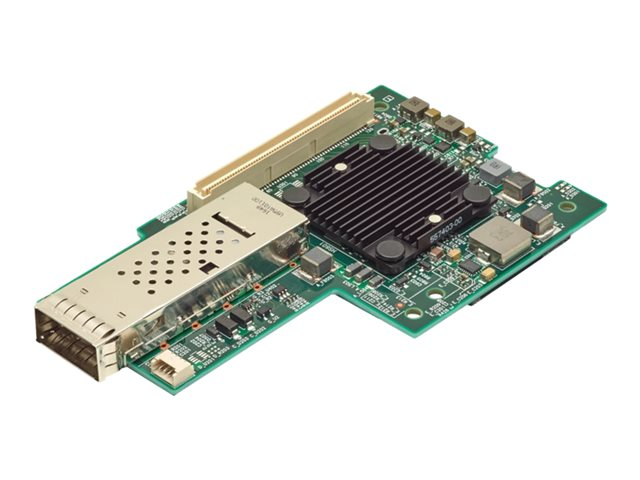

    The Broadcom BCM957414M4143C is a single-port 50 Gb/s, PCI Express 3.0 x8 Mezzanine Card, designed to the Open Compute Project (OCP) Mezzanine Card 2.0 Design Specification with a QSFP28 network connector as a Type 1 adapter with the board outline adhering to the original v0.5 dimensions. The adapter supports both QSFP28 optical modules and copper direct-attach cables. The card uses the Broadcom BCM57414 50GbE MAC controller with an integrated single-channel 50GbE SFI transceiver.
